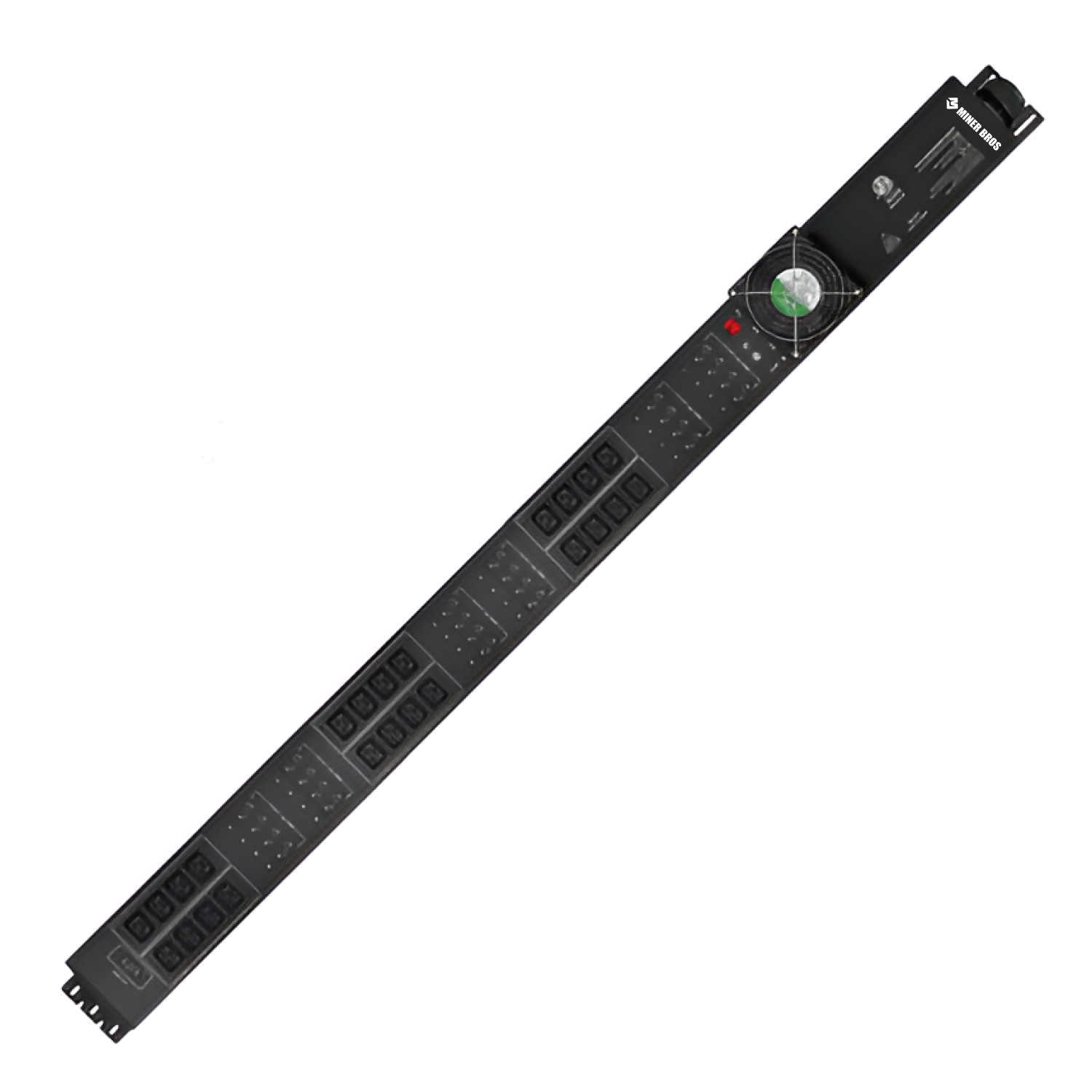

CMB24P 160A 3-Phase Crypto Mining PDU 380-415V, 24 C19 Outlets

This PDU is ideal for cryptocurrency mining farms, data centers, and server rooms requiring stable, high-capacity power distribution.

Electrical Specifications:

• Maximum Current: 160A
• Rated Voltage: 380-415Vac, WYE, 3N~, 50/60 Hz
• Output Voltage: 220-240Vac

Input Details:

• Cord Entry: Bottom Feed

Output Details:

• Outlets:

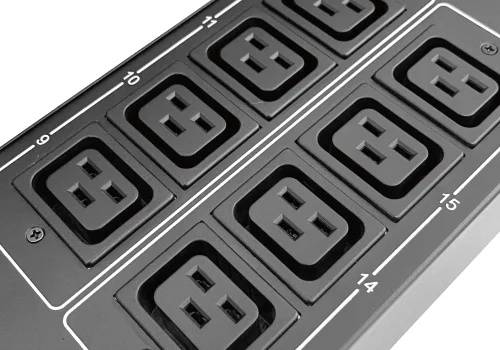

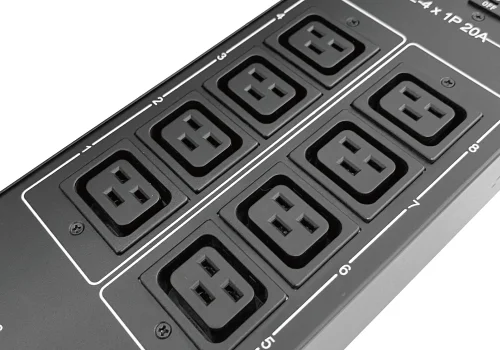

  24 x IEC 60320 C19 (Rated: 20A)

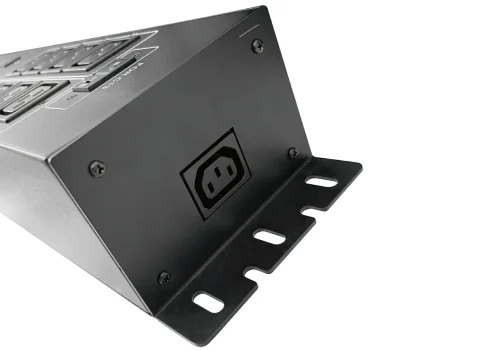

  1 x IEC 60320 C13 (Rated: 10A)

Protection and Monitoring:

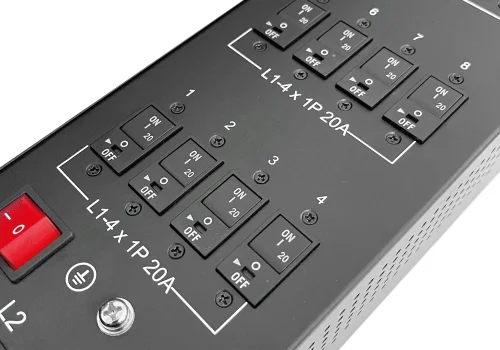

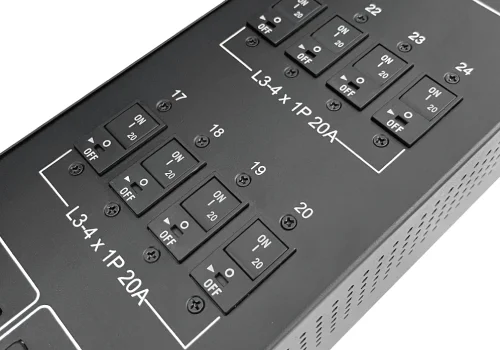

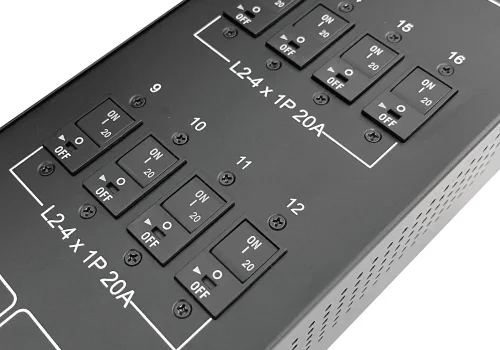

• Breaker: 20A hydro magnetic switch for each C19 outlet
• Overload Protection: 20A per unit

Physical Specifications:

• Rack Height: 1U
• Housing: 1.2 SGCC with Black Powder Coating
• Dimensions: 189 cm x 22 cm x 23 cm
• Weight: 18 kg

Continuous Load Recommendation: For safety and longevity, adhere to the 80% rule for continuous loads, limiting usage to 128A to prevent overheating and ensure reliable operation.

Mounting Flexibility: Reversible housing allows versatile installation options, including wall, workbench, rack, or under-counter mounting to suit various setup requirements
