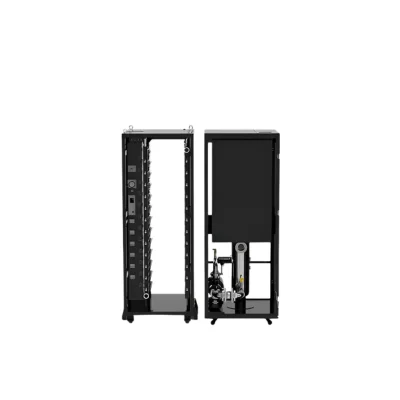

Bitmain Antminer MB-H200-S-3U Hydro Cooling Support (14 Asic Miners)
Bitmain Antminer MB-H200-S-3U Hydro Cooling Support (14 Asic Miners)
$14,999
| Note : We ship from the closest stock. Contact Sales to save on shipping. |
Rack + CDU + DRY Cooler
Buy Now
Add to cart
Product Description
The MB-H200-S-3U Hydro Cooling Suite supports up to 14 Antminer hydro miners with deionized water circulation, combining compact design and powerful cooling for efficient home mining.
Specifications
| MB – H200-S-3U Tank & Dry-Cooler | |
|---|---|
| Model | MB-H200-S-3U Hydro Cooling Suit |
| Miners capacity | 14 * Antminer 3U S21EXPH |
| Maximum load, kW | 200kW |
| PDU | 20 Port SA2-30 Smart PDU |
| Network | 1000M Network Switch |
| Operation Temperature | -25℃~45℃ |
| Operating Humidity | 5%~95%RH |
| Water Manifold | Stainless Steel |
| Hose | PE/PTFE Hose + Quick Connects |
| H200 – CDU | |
| Cooling Capacity | 200kw |
| Power | 3.5kW |
| Input Voltage | 3-Phase 380V-480V, 50/60Hz |
| Inlet/Outlet | 10°C (Normal) 14°C (High Performance) |
| Cooling | Pure Water / Soft water + Antifreeze + Corrosion Inhibitor |
| Communication Method | Modbus-RTU,TCP/IP |
| PLC System | Constant flow control with pressure regulation |
| Fluid Flow Rate | 20m³/h |
| Operating Temperature | -25°C ~ 45°C |
| Operating Humidity | 5%~95%RH |
| Design Pressure | 0.3MPa |
| MB-H200- Dry Cooler | |
| Model | FHWDC200 |
| Module | Dry Cooler V Type |
| Cooling Capacity | 200kW |
| Wight(Empty Load) | 800kg |
| Fan(s) | 2 |
| Connection | DN50 |
| Fluid | Coolant |
| Fluid flowrate | 20m³/h |
| Inlet/Outlet Temperature | 55℃/40℃ |
| Ambient temperature | 35℃ |
| Fin/Tube Materials | 304 Stainless steel，Al-mg/AI |
| Operating/Maximum Pressure | 0.3MPA/1.6MPA |
